Beyond the Sea, led by visionary sailor Yves Parlier, is unveiling a groundbreaking kite-traction system: the DynaKite®.
This innovative kite propulsion system has been specially designed for vessels over 12 meters. Following the LibertyKite® and the SeaKite®, this new technology marks a decisive milestone in the company’s mission: delivering simple, efficient, and accessible alternatives to accelerate the maritime energy transition.
Combining performance, simplicity, and robustness, DynaKite® is compact and integrates easily on the deck of any vessel. The DynaKite® system automatically pilots a two-line kite, using an electric motor with low power consumption. It not only provides traction and in-flight steering, but also enables semi-automatic launch and rapid wing recovery. Thanks to its dynamic flight modes, in particular the 360° one, and high flight altitude, DynaKite® can generate up to 10 times more pull than more conventional rigs.
- High performance
- Easy to use
- Designed for the marine environment
- Small deck footprint
- Robust and safe
- Continuous flight optimization
- Easy to install
- Continuous 360° flight
- Low power consumption

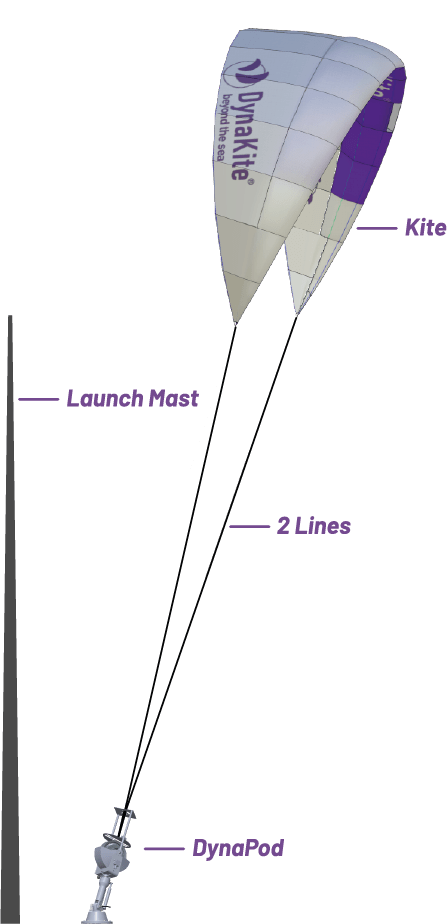

System components
-
Dynapod
Winches and drives that automatically control the kite. A mobile motorized module enabling 360° flight.
-
Launch mast
Allows safe launch and recovery of the kite.
-
Kite lines
Two lines connecting the kite to the system, simplifying setup and operation.
-
Kite wing
Hybrid two-line kite for greater stability, featuring an arched aerodynamic profile for higher performance.
-
Control screen (HMI)
A monitoring and optimization tool that displays the kite’s traction in real time, ensuring precise performance tracking.
Available ranges & expected performance
| PRODUCT NAME: DYNAKITE | 60 kW | 120 kW | 300 kW | 600 kW |
|---|---|---|---|---|
| Vessel size (m) | 12 – 18 m | 15 – 25 m | 22 – 35 m | 35 – 60 m |
| Kite surface area (m²) | 20 m² | 40 m² | 80 m² | 100 m² |
| Traction capacity (t) | 1 ton | 2 tons | 5 tons | 10 tons |

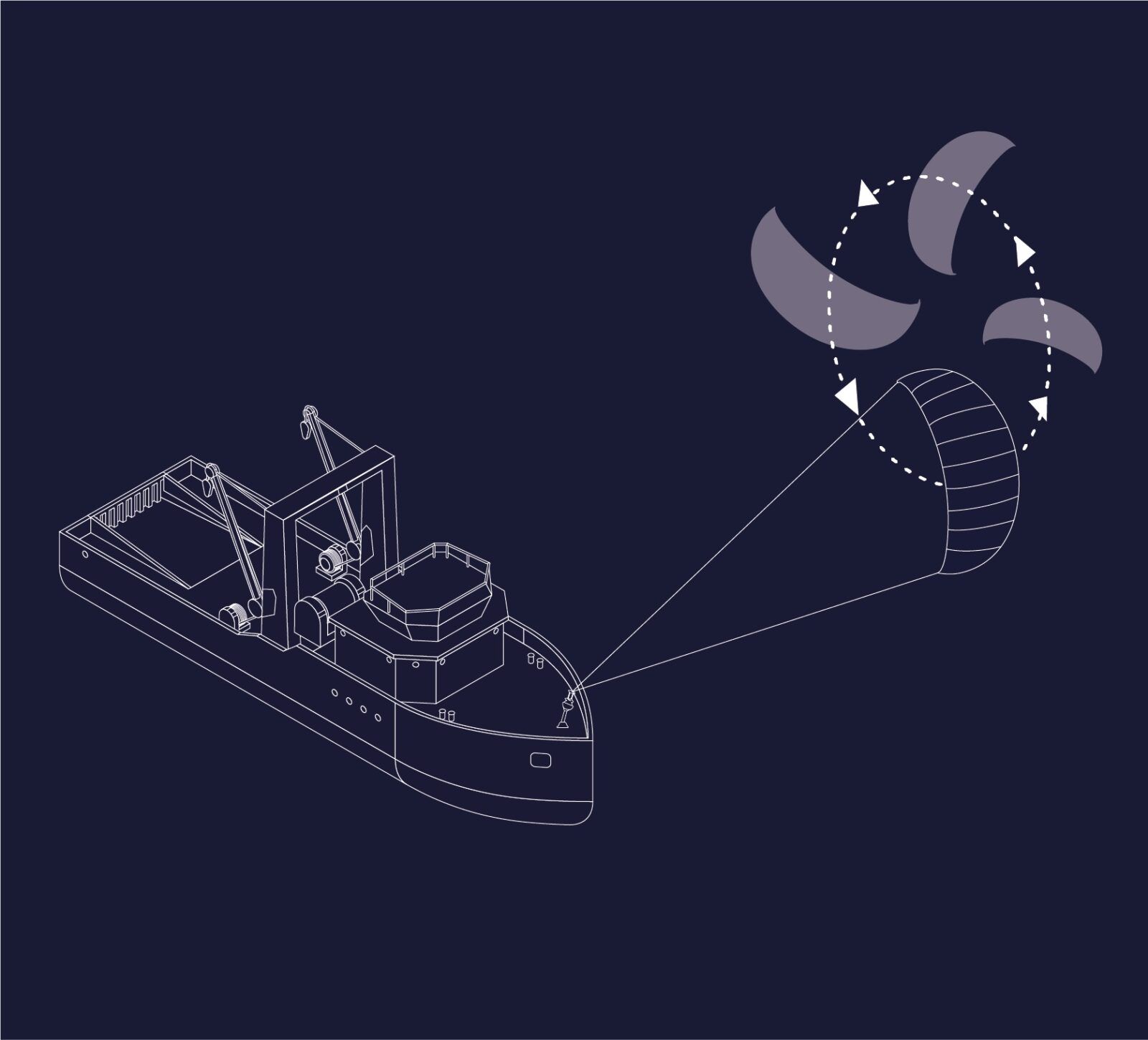

Innovation: 360° flight for continuous traction
The DynaKite® features several flight modes, including an innovative one: 360° continuous flight. This movement ensures powerful and stable traction, without the risk of line entanglement. It is made possible by the Dynapod, equipped with its hub motor and swivel system.
